HT4P Safety Commander

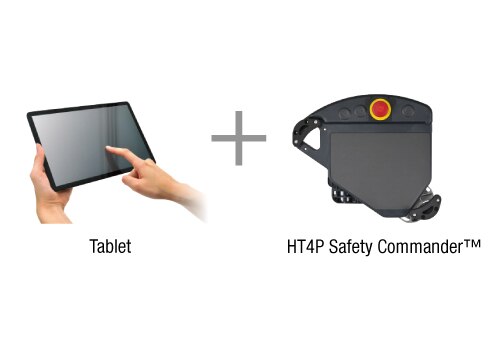

Enable industrial tablets to provide operation safety
Complies with safety requirements as required by the
ISO 10218 series
Key Features:

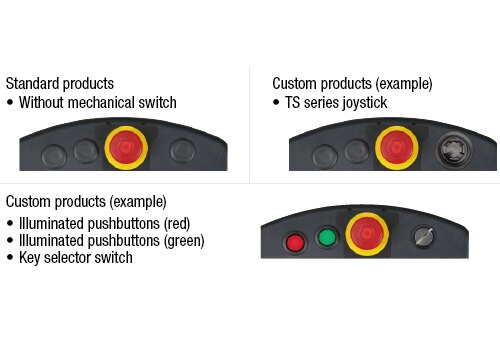

Mechanical switches
• Up to 3 IDEC LB series switches can be installed. (*1)
• Reliable operation.
• Ideal for a wide range of applications. Complies with various standards.
*1) The product will be shipped with requested switches. See P7 for custom products.
USB/LAN converter with built-in USB power delivery
• Wired LAN enables stable communication regardless of the environment.
• USB power delivery allows battery charge via USB while communicating.
No need to worry about the battery running out.

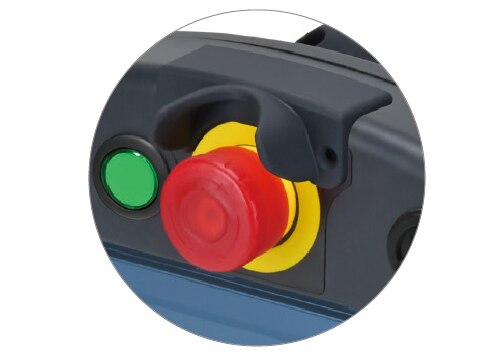

Emergency stop switch with LED indicator
Equipped with a safety lock mechanism, safe break action structure, and direct opening action.
Emergency stop switch guard (accessory)
Retrofittable guards available.

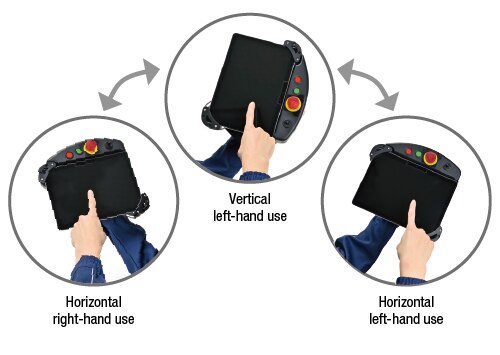

Vertical and horizontal operation for flexible use Ergonomic design for improved operability
• Rotating grips allow the tablet to be used in vertical or horizontal orientation.
The emergency stop switch, which must be accessed instantly, can also be positioned for ease of use.
• Easy to hold and operate, regardless of handedness. The ergonomic holder design and enabling switch position result in ease of holding and operability.

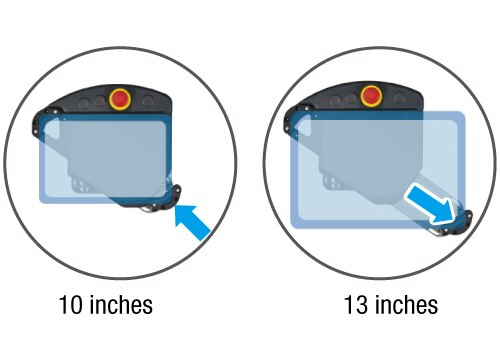

Safety device easily attaches to a 10- to 13-inch tablet
• The tablet can be readily equipped with a safety device.
• Equipped with slide mechanism.
• Fits large and rugged tablets.

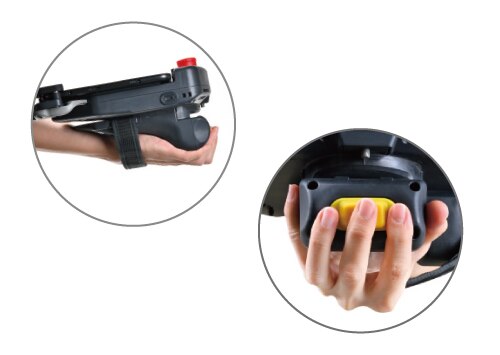

Three-position enabling switch
Safety during work operations is assured by the ergonomically designed three-position action to avoid danger.
Note: ISO 10218 series specifies the requirement for the installation of the three-position enabling switch on the teaching pendant.
Rotation unlock button
Allows the grip to rotate only when the button is pressed, preventing unintentional rotation.

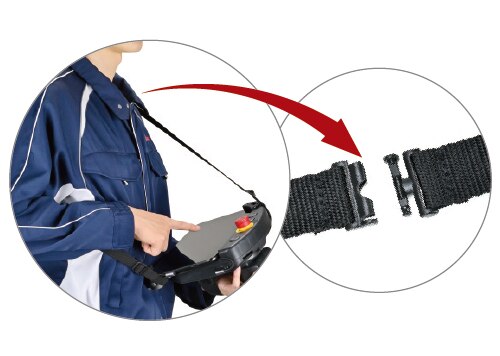

Hand strap or shoulder strap (accessories)
• Prevents the product from dropping during hand-held operation.
• Reduces the burden when working long hours.
• The shoulder strap has a safety feature that disengages when a certain load is applied.

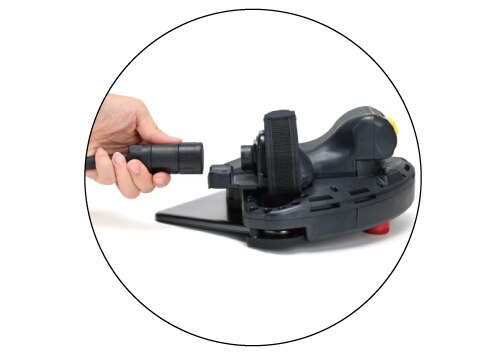

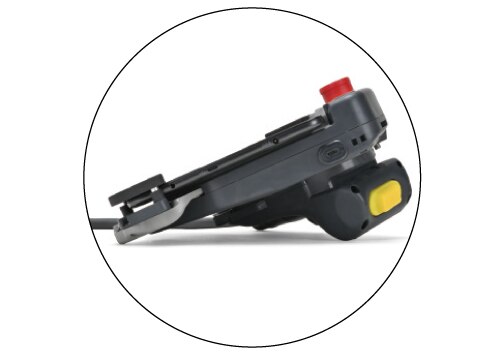

Can be used set down
Enables stable operation while placed on a desk.
Note: Excludes operation of enable switches.
Rugged construction with drop resistance of 1.2m
Designed for assurance, the product has passed drop tests assuming accidental drop or impact while carrying. (*)
*) Drop resistance has been tested for tablet weights up to 1.1 kilogram.
Note: Drop protection of the product or tablet is not guaranteed.
IP54 protection
Usable even in dusty environments or when exposed to splashing or spraying.

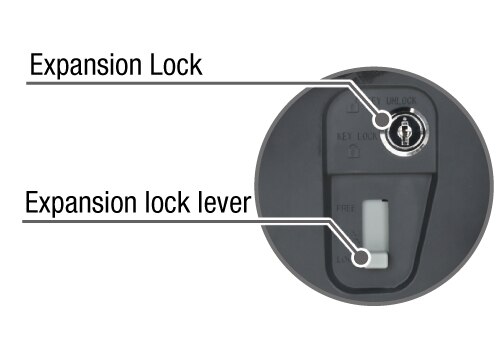

Expansion Lock
Prevents unintentional removal of the tablet.
Expansion lock lever
Locks the extension of the tablet holder.

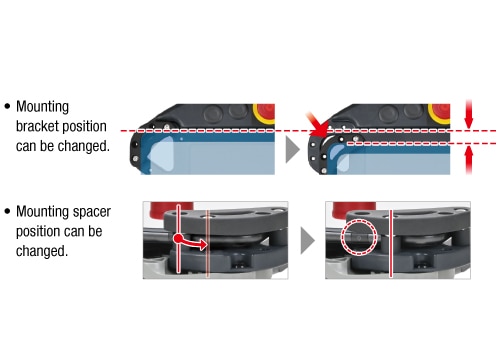

Movable mounting hooks & spacers
The power and audio buttons on the tablet can be operated when mounted, as bracket and spacer positions can be changed.
Waterproof connector/ Wired LAN, switch contact, power supply cable (accessories)
• Connector allows one-touch connection and disconnection of the cable.
• Easy maintenance.

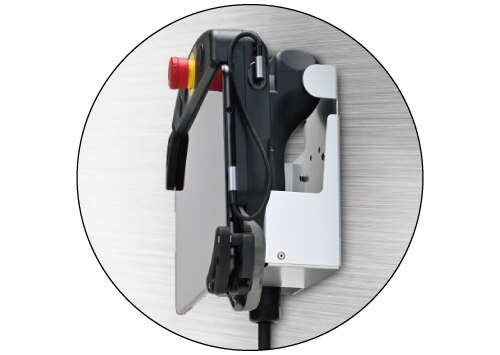

Wall mount
Wall mount bracket (accessory) enables operation while fixed to the wall.
Note: Only for operations that do not require an enabling switch.
Customer benefits

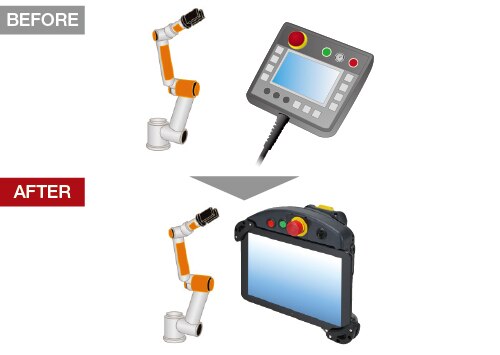

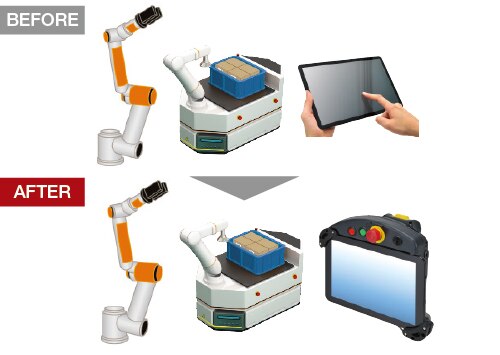

1. Improved safety of tablets
Before
・Devices can be controlled by only using tablets.
・Safety is not ensured without safety devices.
・Does not satisfy safety standards.
・Wireless features are affected by noise.
After
・Improved safety with safety devices.
・Complies with international safety standards.
・Wired LAN enables safe communication.
2. Eliminates the need to develop a dedicated device
Before
・Large development and production costs.
・Difficult to handle discontinuation of parts.
・Complex operation due to too many buttons.
After
・No hardware development required. Software only.
・Low cost.
・Easy to operate.
3. Replacement for a touch panel on a control panel
Before
・Individual touch panels are installed on multiple panel boards.
After
・One Safety Commander can be used in multiple locations.
・Cost reduction and space saving of control panel.
・Reduced number of touch panels.

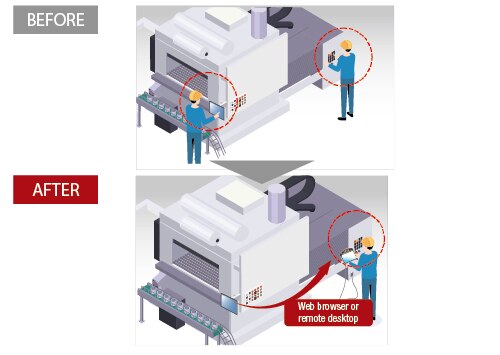

4. Enables operation close to the machine
Before
・Fixed touch panels are used to control large machines.
・Multiple workers call out to each other during maintenance.
After
・By using the product together with a fixed touch panel, machines can be operated using the web browser and remote desktop functions.
・Workers can operate close to the machine and the number of workers can be reduced.

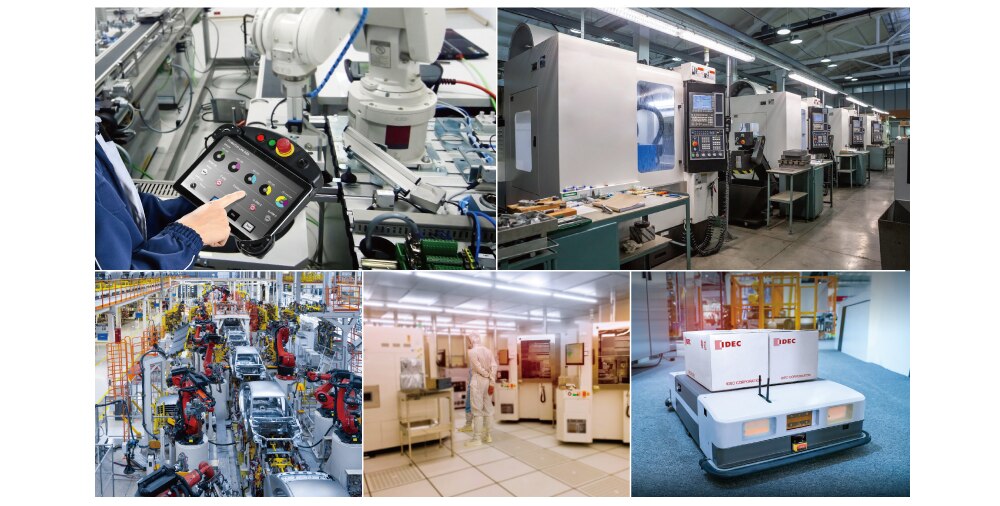

Applications
・Robot teaching
・Large equipment and machinery
・Automotive production lines and conveyor lines
・Semiconductor manufacturing equipment, chip mounter, food & packaging equipment
・AGV and AMR
